ELECTRONIC MESSAGE CENTER AND VIDEO DISPLAY SPECIFICATIONS
Color(s)	Full Color, Red or Amber
Display Capability	4,000 shades or 4+ billion colors
Matrix	Varies by size
SolarBrite™ LEDs	Yes
Balanced Array™ Exposed LED Sign	6, 8, or 10 mm
Classic™ Series Exposed Pixel-Cluster Sign	II, III, VI, X
SMD Enclosed Pixel-Cluster LED Sign	8 or 10 mm
Balanced Array™ Monochrome Exposed LED Sign	10 mm
LEDs per square foot	Seven Options Available: 2747, 2344, 1545, 1462, 1073, 930, 687
Resolution (Pixels per Square Foot)	Seven Options Available: 9376, 5848, 3720, 640, 525, 362, 232
Viewing Angles (Horizontal and Vertical)	170° horizontally, 90° vertically
Display Type	Retainer faces or bleed faces
Impact-Resistant, Flame-Proof, UV-Protected Faces and Glare Shields	Individual shields and curved
Minimum Character Size	Varies by Resolution and Type (Balanced Array™ or Classic)
Time and Temperature Option	Included
Automatic Brightness Control	Yes
Automatic Temperature Protection	Yes
Computer Link Type	Wi-Fi
Open Architecture Programming Software	Yes
Automatic Error Reporting	Available
Individual LED Brightness/Hue Adjustment	Yes
Both Superior™ and Enhanced™ Operating Modes	Yes
Text/Graphics Capability	Both
Text-over-Image	Yes
Preprogrammed Fonts	Yes
Animation	Yes
Slideshow Playback	Yes
Video	Yes
Clip-Art	Yes
Double-faced Sign Single/Double Programming Options	Yes
Group Links	Optional
Programming via Internet Option	Available
Multiple Power Ventilation - Thermostat-controlled	Yes
64 GB Non-volatile Memory	Yes
No Internal Computer - Processor Only - Does Not Operate on "Windows"	Yes
SolarGuard™ Protection	Yes
Lumabrite™ Protection - Self-Cleaning Faces	Yes
Power Requirement	220v 1ph in most cases
Overvoltage, Low Voltage, Spike, Brownout Electrical Protection	Yes
Free Programming - Preprogrammed	Yes
Double-faced Signs Manufactured Enclosed In Single Cabinet:	Available
All aluminium Exterior Metal	Yes
Structural Steel Interior Frame	Yes
CNC Precision Manufacturing	Yes
Vacuum Ceramic Microsphere Shield	Yes
Painted with Signlux Paint System™	Yes - 32,807 color choices
US Military Specification Electrical Insulating Coating  (MIL-I-46058C)	Yes
H2ORepel™ Interior Waterproof Coating	Yes
All components will be new.	Yes
All fasteners will be galvanized or non-corrosive.	Yes
24 hour Temperature Rise Tested (ANSI/UL 5.2)	Yes
24 hour Electrical Usage and Stability Tested (ANSI/UL 5.5)	Yes
Gasket Aging Tested (ANSI/UL 5.7)	Yes
Gasket Adhesion Tested (ANSI/UL 5.8)	Yes
Exclusion of Water Tested (ANSI/UL 5.9)	Yes
Hi-Pot Tested while the Sign is Wet (ANSI/UL 5.3)	Yes
Bond Impedance Tested (ANSI/UL 5.1)	Yes
Electronics Input Tested (ANSI/UL 8.2)	Yes
Electronics Humidity Tested (ANSI/UL 8.12.1)	Yes
EMI and EMC Tested   (IEC/EN 61000-4-1 thru 6-4)	Yes
Hi Temperature Tested  (Mil Std. 883)	Yes
Altitude Tested  (Mil Std. 810)	Yes
Dielectric Voltage Withstand Tested  (ASTM D149-09)	Yes
UL or ETL Listing Mark	Yes
Warranty	LIFETIME* Warranty
Zap Protection™	Available
Zap Insurance™	Available
“Partial” and “Final” Lien Releases to insure that Customers are never personally liable for Materials and Labor debts	Yes
$3,000,000 General Liability Insurance	Yes
Product Liability Insurance	Yes

OVER 100 INSTALLATIONS JUST IN DFW

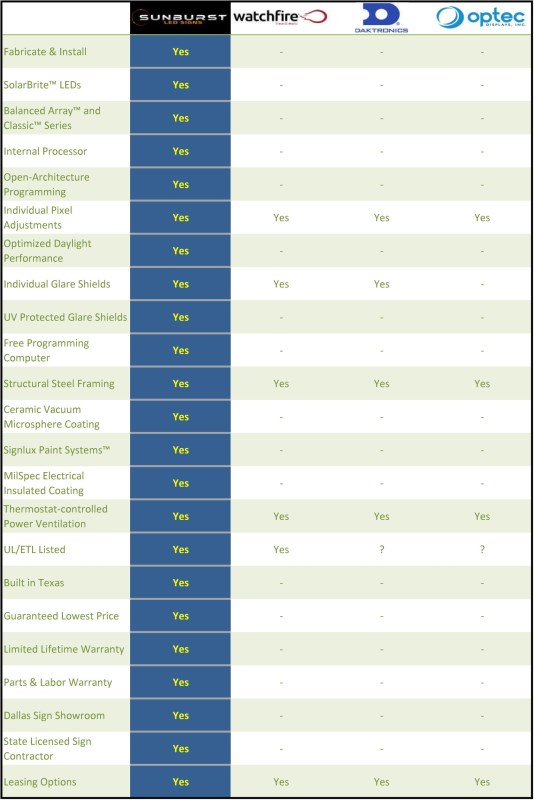

How Does a Sunburst Sign Compare To Other Brands?

---



Aluminum Sign Cabinets

---

Many LED sign companies are just finally realizing the benefit to fabricating an all-aluminum sign cabinet. SunburstLEDSigns has been doing it for years!

Aluminum dissipates heat better than steel. By fabricating our signs out of all aluminum we make the entire sign one big heat sink! Since heat is the enemy of electronic components, this dramatically improves the life of a SunburstLEDSigns digital display, far beyond our competitors.

That doesn't mean we don't ventilate the signs properly, we do. Our signs have IN and OUT flow venting to constantly move hot air outside of the sign. Many LED sign companies believe, incorrectly, that just making an aluminum box will keep the heat out. Try standing in an aluminum box in Texas in June and tell me it's not hot...

One other nice aspect of aluminum signs is that they do not rust like the steel framed signs. Many Chinese companies are now using aluminum because they have to ship in the parts overseas, and they're finding that those signs are rusting before they even arrive on the US coast! Thankfully, we aren't having to ship the signs form China, we build them right here in Texas!

Which Model Sunburst Sign Is Right For Me?

---

Don't get sold the cheapest thing on the market. Sometimes a low resolution sign is the right move, but usually it's not. Plus, you pay a lot more for those low resolution displays than you would for a higher resolution one.

Take a look a the chart to the right. You can see how the number of LEDs in the sign really jumps up ... but the price doesn't!  You get a lot more for your advertising dollar with a higher resolution sign.

Be sure to ask our Representative which resolution is ideal for your situation. We will take into consideration the viewing angle, viewing distance, type of messages you would like to put on the sign, the size of the sign, the City ordinance, and many, many more factors. Then we'll make a recommendation.

Plus, we'll give you OPTIONS and explain what the differences are.

Not only that, but we'll show you the differences!

Our showroom has SIX different models of LED signs for you to review and see for yourself what your new sign will look like!
